Sleeps 5
-
3 Slides
-
Outdoor KitchenKitchen Island
-
33ft Long
-
9,895 lbs

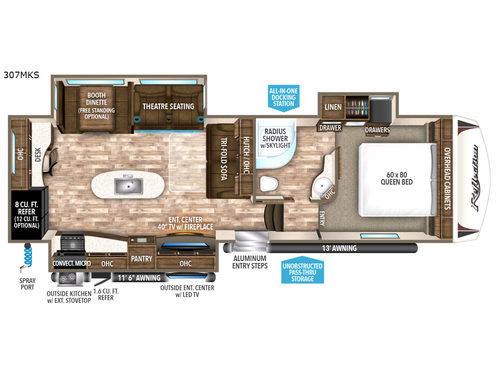

307MKS Floorplan
Specifications
Sleeps | 5 | Slides | 3 |
Length | 32 ft 11 in | Ext Height | 12 ft 4 in |
Exterior Color | Ivory | Hitch Weight | 1595 lbs |
GVWR | 12995 lbs | Dry Weight | 9895 lbs |
Fresh Water Capacity | 60 gals | Grey Water Capacity | 75 gals |
Black Water Capacity | 43 gals | Furnace BTU | 40000 btu |
Available Beds | Queen | Refrigerator Type | Double Door |
Refrigerator Size | 8 cu ft | Convection Cooking | Yes |
Cooktop Burners | 3 | Number of Awnings | 2 |
LP Tank Capacity | 30 | Water Heater Capacity | 6 gal |
AC BTU | 15000 btu | TV Info | LR 40", Ext. LED |
Awning Info | 13' & 11'6" Power | Number of LP Tanks | 2 |
Shower Type | Radius | Electrical Service | 50 amp |
Description
If you have been searching for a fifth wheel with triple slide outs, a rear desk, a kitchen island, and an outside kitchen and TV then take a look at this Grand Design Reflection mid-sized fifth wheel 307MKS.
Once you step inside you will immediately be impressed with the spaciousness of the living room and kitchen area to your left. There are two opposing slide outs providing an open concept family area.
To your immediate left of the entrance you will see an entertainment center with 40" TV and fireplace, a pantry, counter space, three burner range, and a convection oven inside the first slide out. An 8 cu. ft. refrigerator with a 12 cu. ft. option, and a desk with chair and overhead storage can be found along the rear wall. There is a center kitchen island which includes a large sink for easy food prep and cleanup. The second slide along the road side wall features theatre seating for two, and a booth dinette with a free standing dinette option. There is also a hutch with overhead cabinets including a tri-fold sofa below along the interior wall providing more seating and storage.
Head up the steps in the hallway to find a side aisle bath on your left. The bathroom is accessible from the hall door, or from within the bedroom. There is a radius shower with skylight, a toilet, vanity with sink, and a linen cabinet within the bedroom slide out.
Enjoy a restful night's sleep in a comfortable queen bed including overhead storage cabinets and nightstands beside the bed. There is a slide out with a wardrobe, drawers, and a linen cabinet that falls within the bath mentioned above.
You are sure to appreciate the exterior unobstructed pass-through storage and all-in-one docking station, plus the spray port. Also you can enjoy the outdoors while cooking at the outside kitchen with extension stovetop and refrigerator, as well as watching the outside TV, and there is more!
Features
Standard Features (2018)
Exterior
- Aerodynamic Front Cap with Max Turn Radius
- Marine Grade LED Hitch Light (FW)
- LED "Night Lights" Under Bedroom Slide (FW)
- Rubberized Suspension Equalizer (FW)
- Aluminum Wheels with E-Rated Tires
- 80% Tint Radius Safety Glass Windows
- Battery Kill Switch in Pass Thru Storage Area
- Extended Pin Box (FW)
- 30# LP Bottles (2)
- 30" Radius Entry Door
- Outside Speakers
- Outside Shower
- Factory Installed Roof Ladder
- Under Carriage Spare Tire and Carrier
- High-Capacity Water Pump with Interior and Exterior Switch
- Extra Large 1 1/2" Fresh Water Drain Valve
- Integrated Front Cap LED Lights (TT)
Interior
- Hand Rubbed Maple Cabinet Doors
- Solid Hardwood Drawer Fronts
- Louvered Tread Steps to Bedroom (FW)
- Solid Core Cabinet Stiles
- Pre-drilled and Screwed Cabinetry
- Ball Bearing Full Extension Drawer Glides
- Tri-Fold Hide-A-Bed Sofa (Model Specific)
- Large Panoramic Slide Room Windows
- Premium Congoleum Flooring
- Ductless Flooring Throughout Living Area
- Residential Style Window Treatment
- LED Lighting Throughout with Motion Sensors (Key Areas)
- Pleated Night Shade Window Covering (TT)
- Roller Shade Window Covering (Night Shades 28BH and 29RS) (FW)
Kitchen
- Gunstock Fixtures and Hardware
- Deep, Undermount Kitchen Sink
- Hardwood Galley Slide Trim Moldings and End Caps
- Hardwood Panel Refrigerator Fronts
Bathroom
- Spacious Shower with Glass Door
- Wide View Skylight Over Shower
- Heat Duct and A/C Vents in Bathroom
- Power Vent Fan
- Extra Large Lav Top with Stainless Steel Sink
- Large Medicine Cabinet with Mirror
Bedroom
- King Size Wardrobe
- Pillowtop Mattress
- Oversized Underbed Storage
- Residential Bedspread
- Bedroom Heat Registers
- Closeable A/C Vents
- TV and Cable Prep
Construction
- Gel Coated Fiberglass Exterior (TT)
- Gel Coated Ivory Fiberglass Exterior (FW)
- Residential 5" Truss Rafters (16" O.C.)
- Walk On Roof Decking
- Fiberglass and Radiant Foil Roof and Front Cap Insulation
- One-Piece TPO Roof Membrane with 12-Year Warranty
- Easy Access Low Point Drain Valves
- Laminated Aluminum Framed Rear Wall (R-9)
- Laminated Aluminum Framed Side Walls (R-9)
- Laminated Aluminum Framed Roof and End Walls in Slide Rooms (R-9)
- Aluminum Framed Main Floor (R-30*)
- Residential Wood Framed Roof (R-40*)
- Aerodynamic Front Cap with Max Turn Radius
- Marine Grade LED Hitch Light (TT)
Ultimate Power Package (Mandatory)
- One-Touch Electric Awning with LED Light
- One-Touch Auto Leveling (FW)
- Power Stabilizer Jacks (TT)
- HDMI/AM/FM/CD/DVD Bluetooth Stereo System
- High Definition LED Television w/Swingarm (Living Area)
- 50 AMP Electrical Service
- Wired and Framed for 2nd A/C in Bedroom
- Detachable Power Cord with LED Light
- Maxx Air Fan w/Rain Sensor
- Convection Microwave Oven
- 15k BTU Ducted A/C
Peace of Mind Package (Mandatory)
- Residential Cabinetry
- Solid Surface Countertops
- Aluminum "Tread Lite" Entry Steps
- Metal Slam Baggage Doors with Magna Latch
- 8 Cu.Ft. Double Door Refrigerator w/ Ext. Thermostat Control
- 17.8 Gal./Hr. Quick Recovery Water Heater
- Porcelain Toilet with Foot Pedal Flush
- Residential Single Lever Faucet with Pullout Sprayer
- Solid Surface Sink Covers
- Universal All-In-One Docking Station
- Black Tank Flush
- Residential Fireplace
- Heated Wall Hugger Theatre Seats w/ LED Lights (Most Models)
- Residential Booth Dinette
- LP Quick Connect
- Nev-R-Adjust Brakes
Arctic 4-Seasons Protection Package (Mandatory)
- 35k BTU High Capacity Furnace
- Thermofoil Wrapped Frame and Subfloor (Beneath Main Holding Tanks)
- Heated and Enclosed Underbelly w/Circulating Heat
- Ducted Heat to Pass Thru Storage Area
- Heated and Enclosed Dump Valves
- EZ Winterization Valve in Utility Center
- Insulated Slide-out Floors
- Attic Vent
- Double Insulated Roof and Front Cap
- Zero Degree Extended Season Enjoyment
Options
- Free Standing Table w/Storage Drawer and 4 Chairs (2 folding) (NA 28BH, 285BHTS))
- 2” Receiver Hitch (Mandatory)
- Dual Pane Windows
- 12 cu. ft. Refrigerator (Forced/Mandatory on FW only; on TT 312BHTS, 315RLTS only) (NA 29RS)
- Tri-Fold Sofa IPO Theatre Seating (Forced on 28BH) (312BHTS)
- King Bed (320MKS, 337RLS, 367BHS) (315RLTS)
- 2nd A/C Low Profile 13.5k BTU Ducted (FW)
- 2nd A/C 15k BTU Ducted (TT)
- 78" Theatre Seating IPO Booth Dinette (28BH)
- 2nd Awning (NA 28BH and 29RS) (Forced/Mandatory - FW; Forced - 315BHTS; Optional TTs)
- 78" Theatre Seating IPO U-Shaped Dinette (285BHTS)
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
